MEWP Mobile Aerial Platform 10m Height Scissor Lift For Factory Building

Name: MEWP Mobile Aerial Platform 10m Height Scissor Lift For Factory Building
Brand: JESH
Price: 10000 USD

MEWP Mobile Aerial Platform 10m Height Scissor Lift For Factory Building Manufactures

Brand Name : JESH

Model Number : SS1012HM

Certification : CE/ISO

Place of Origin : China

MOQ : 1 unit

Price : US$10000-US$18000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 units per month

Delivery Time : 10-30days

Packaging Details : MEWPs 10m hydraulic scissor lift for factory building will be packed as per internaitonal export standard.

Feature : Self-propelled

Lift Drive/Actuation : Hydraulic

Platform Height : 10m

Platfrom Capacity : 320kg

Power : Battery

Weight : 3070kg

Application : factory building, shipping building etc.

Color : Light Green gray / as per your demand

Contact Now

MEWP Mobile Aerial Platform 10m Height Scissor Lift For Factory Building

JESH self-propelled scissor lift covers working height from 6m-15m , which is suitable for indoor or outdoor use on solid flat ground.

The product is compact in structure and flexible to operate. Equipped with perfect security sensor, it delivers lower noise, superb operability, which is ideal for narrow working conditions requesting higher flexibility. To strenthen design, high strength steel is used for key structures,

Technical Parameters

Model	SS1012HM
Dimentions
Working height	12.0m
Platform height	10.0m
Max drive speed	10.0m
Platform length	2.27m
Platform length-extended	3.17m
Platform extendable	0.9m
Platform width	1.14m
Height-rails unfolded	2.47m
Height-rails folded	1.94m
Width	1.14m
Length	2.47m
Wheelbase	1.87m
Ground clearance-stowed	10cm
Ground clearance-raised	2cm
Productivity
Platform capacity	320kg
Capacity on extension	120kg
Drive speed	3.2km/h
Gradeability	25%
Raise/lower speed	55/42sec
Turning radius(inside/outside)	0/2.1m
Tire	38.1x 12.9cm
Power
Battery	24V/240Ah
Hydraulic oil tank capacity	20L
Weight	2802kg

Product Inventory

Product Tags:

mobile aerial platform

mobile hydraulic scissor lift

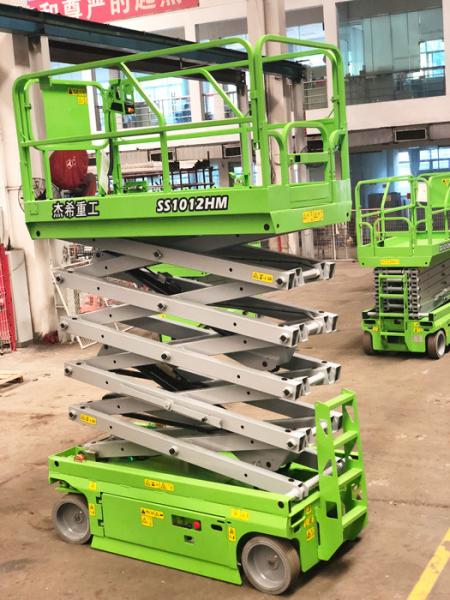

MEWP Mobile Aerial Platform 10m Height Scissor Lift For Factory Building Images
